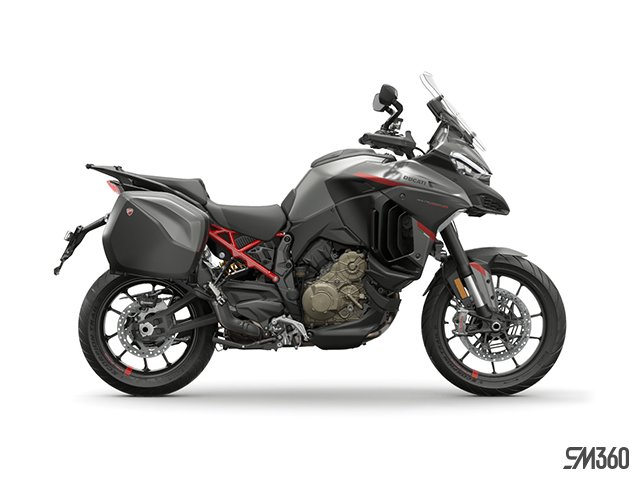

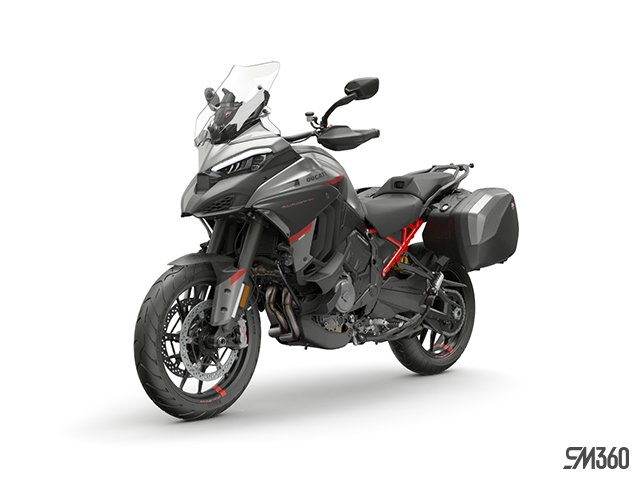

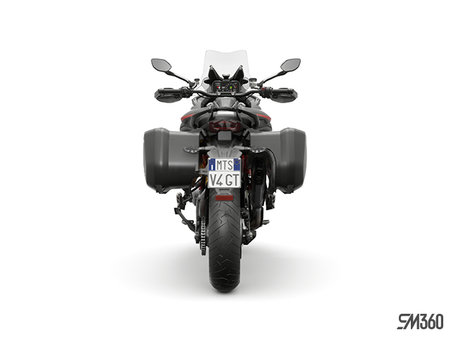

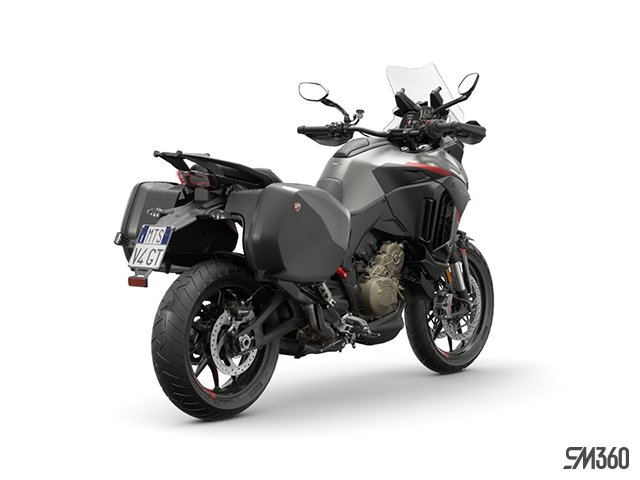

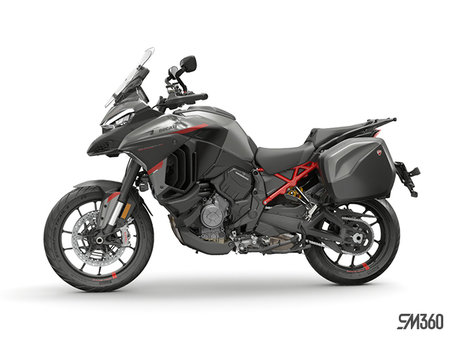

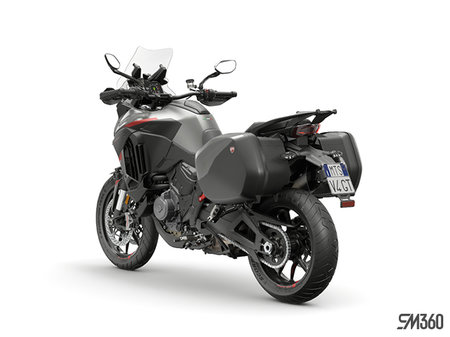

2024 Ducati Multistrada V4 S Grand Tour at Steele Recreation

Standard

• Compression Ratio : 14:1
• Type : Ducati V4 Desmosedici stradale, V4 - 90°, 4 valves per cylinder, counter-rotating crankshaft, dual pulse ignition, semi-dry sump, liquid cooled
• Displacement : 1 158 cc
• Bore x stroke : 83 x 53.3 mm
• Power : 125 kW (170 hp) @ 10,500 rpm
• Torque : 125 Nm (12,7 kgm) @ 8,750 rpm
• Fuel Injection : Electronic injection system, Ø 46 mm elliptical throttle bodies with Ride-by-Wire control
• Exhaust : Stainless steel muffler, dual catalytic converter and 4 lambda probes

Standard

• 6 speed with Ducati Quick Shift (DQS) up/down
• Primary drive : Straight-cut gears, ratio 1.8:1
• Ratio :1=40/13, 2=36/16, 3=34/19, 4=31/21, 5=29/23, 6=27/25
• Final drive : chain, gearbox output sprocket Z16, rear sprocket Z42
• Clutch : Hydraulically operated, oil-immersed multi-plate clutch. Auto-servo action on drive. Sliding action on forward travel.

Standard

• Front Tire : Pirelli Scorpion Trail II 120/70 ZR 19
• Rear Tire : Pirelli Scorpion Trail II 170/60 ZR 17
• Wheel Travel (Front/Rear) : 170 mm / 180 mm (6.7 in / 7.1 in)
• Rear Brake : Ø 265 mm disc, Brembo 2-piston floating caliper, Cornering ABS
• Frame : Monocoque aluminum frame
• Front suspension : USD Ø 50 mm fully adjustable forks. Electronic compression and rebound adjustment with Ducati Skyhook Suspension
• Front wheel: Forged aluminum, 3" x 19
• Rear suspension: Fully adjustable monoshock, electronically controlled with Ducati Skyhook Suspension, double-sided aluminum swingarm
• Rear wheel: forged aluminum 4.5" x 17
• Front Brake : 2 x Ø 330 mm semi-floating discs, Brembo M50 Stylema monobloc calipers with 4 pistons and 2 radially mounted pads, radial master cylinder, cornering ABS
• Rear Brake : Ø 265 mm disc, Brembo 2-piston floating caliper, Curve ABS
• Instrumentation : 6.5 in TFT colour display with Ducati Connect navigation system

Standard

• Standard equipment : Ducati Skyhook suspension, Minimum preload, Ducati Quick Shift, Cruise control, Hands-free key, Backlit handlebar controls, 6.5" TFT color display with Ducati Connect and map navigation system, Full LED lighting, Tyre pressure monitoring system (TPMS), Hands-free fuel filler cap, Additional LED lights, Heated rider seat, Heated passenger seat, Heated handgrips, Centre stand, Composite side cases

Standard

• Number of Seats : 2
• Curb weight without fuel: 235 kg (518 lb)
• Seat height :Adjustable, 840 mm - 860 mm (33.1in - 33.9 in), 855 mm - 875 mm (33.7 in - 34.4 in) with high seat accessory 810 mm - 830 mm (31.9 in - 32.7 in) with low seat accessory 790 mm - 810 mm (31.1 in - 31.9 in) with low seat accessory + low suspension kit
• Wheelbase : 1.566 mm (61,7 in)
• Rake : 24,2°
• Trail : 100.6 mm (4.0 in)
• Fuel tank capacity : 22 l (5,8 US gal)

Standard

• Warranty : 24 months unlimited mileage
• Maintenance service intervals : 15,000 km (9,000 mi) / 24 months
