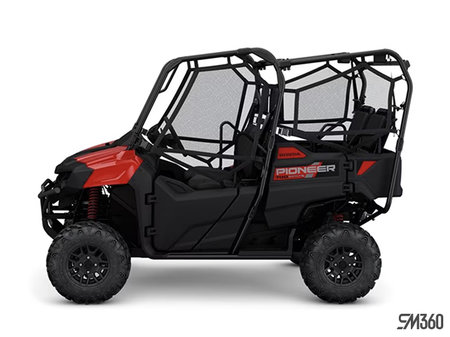

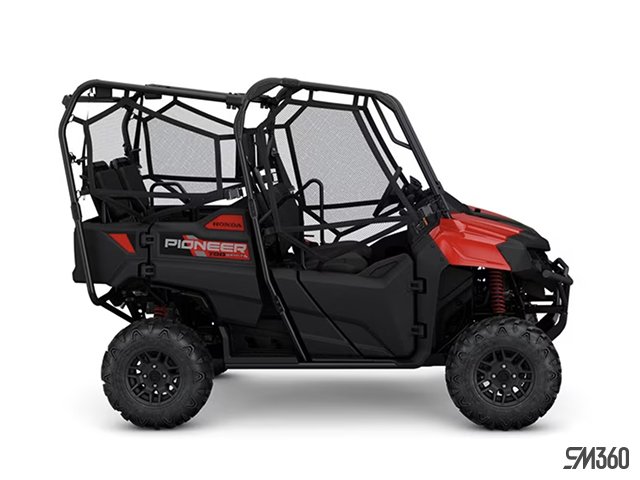

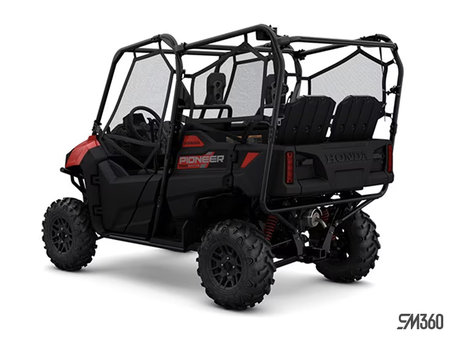

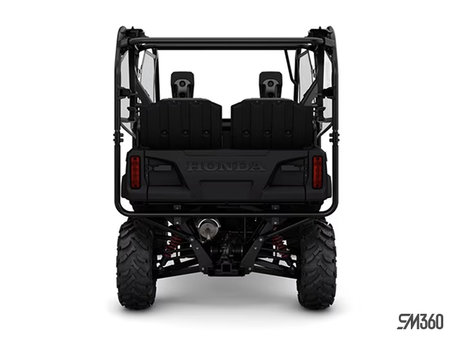

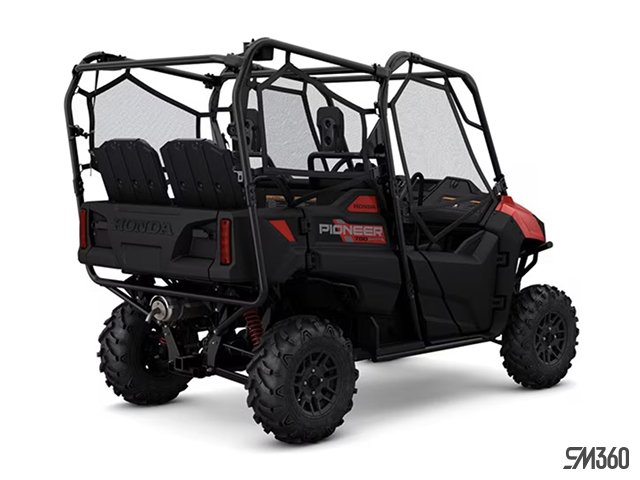

2024 Honda Pioneer 700-4 Deluxe at Steele Recreation

Standard

• Engine Type : Liquid-cooled longitudinally mounted single-cylinder
• Displacement : 675 cc
• Bore & Stroke : 102 mm x 82.6 mm
• Compression Ratio : 9.2:1
• Valve Train : OHV, 4 valves per cylinder
• Fuel Delivery : PGM-FI electronic fuel injection
• Transmission : Automotive-style with hydraulic torque converter, three forward gears and reverse. Equipped with AT/MT modes and paddle shifters
• Power Steering : Electric Power Steering (EPS)
• Final Drive : 2WD, 4WD and 4WD with differential lock

Standard

• Tires : Front: 25 x 8 - 12, Rear: 25 x 10 - 12
• Brakes : Front: Dual 200 mm discs, Rear: Single 170 mm disc
• Towing Capacity : 680 kg (1,500 lb.)
• Bed Capacity : 454 kg (1,000 lb.)
• Length : 2,912 mm (114.6 in.)
• Width : 1,522 mm (60.0 in.)
• Wheelbase : 1,951 mm (76.8 in.)
• Curb Weight : 654 kg (1,442 lb.) including required fluids and full tank of gas – ready to ride
• Fuel Capacity : 30.0 liters, including 4.5-liter reserve
• Warranty : 12 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus
• Colour : Avenger Red

Standard

• Front Suspension : Independent double-wishbone; 200 mm (7.9 in.) travel
• Rear Suspension : Independent double-wishbone; 230 mm (9.1 in.) travel
