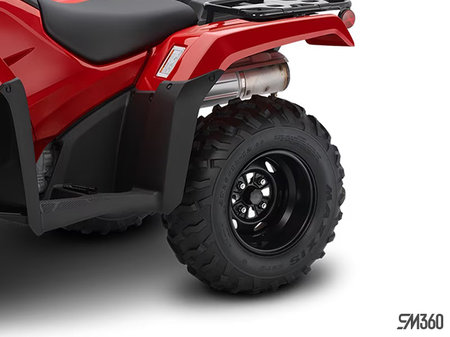

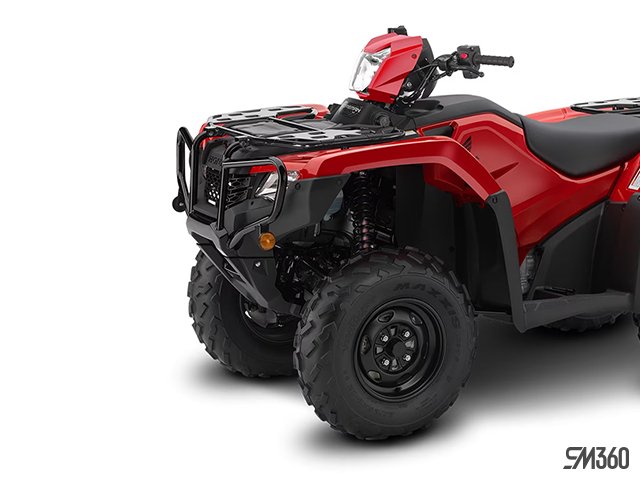

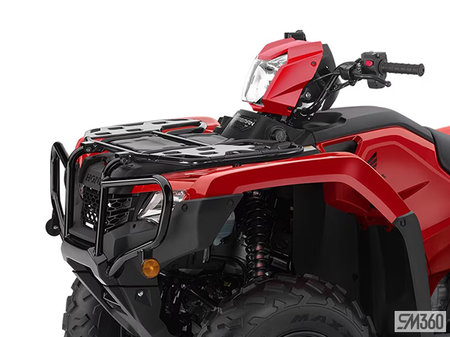

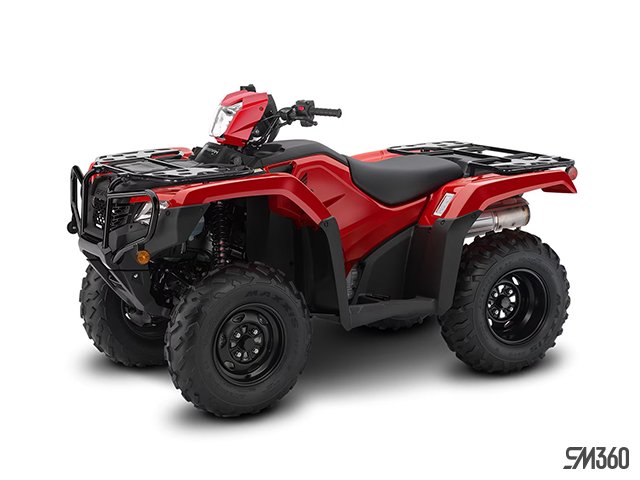

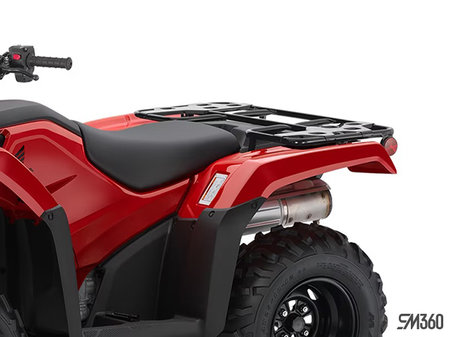

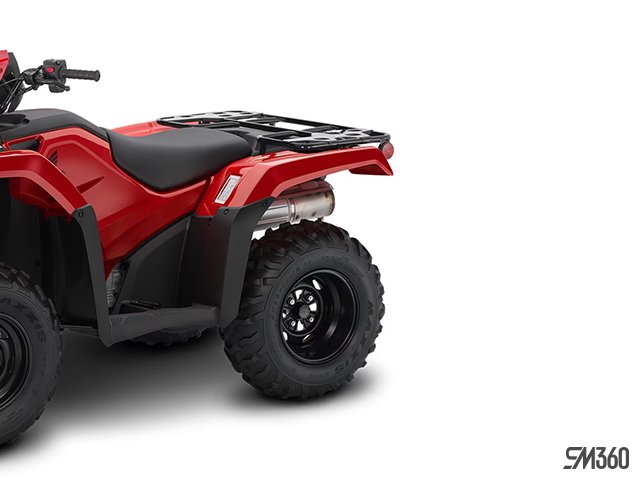

2024 Honda TRX520 FOREMAN 520 ES EPS at Steele Recreation

Standard

• Engine Type: Liquid-cooled longitudinally mounted single-cylinder
• Displacement: 518 cc
• Bore & Stroke: 96.0 mm x 71.5 mm
• Compression Ratio: 9.5:1
• Valve Train: OHV, 2 valves
• Fuel Delivery: PGM-FI electronic fuel injection
• Transmission:Five-speed with automatic clutch, reverse and ultra-low first gear
• Power Steering: Not Available
• Final Drive: 2WD/4WD; direct front and rear driveshafts with switchable 2WD/4WD and torque-sensing/locking front differential

Standard

• Width: 1,205 mm (47.4 in.)
• Fuel Capacity: 14.7 litres, including 4.9-litre reserve
• Warranty: 12 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus
• Tires: Front: 25 x 8 - 12n / Rear: 25 x 10 - 12
• Brakes: Front: dual 190 mm discs / Rear: 160 mm sealed mechanical drum
• Length: 2,106 mm (82.9 in.)
• Ground Clearance: 190 mm (7.5 in.)
• Wheelbase: 1,269 mm (50.0 in.)
• Curb Weight: 297 kg (655 lb.) including required fluids and full tank of gas - ready to ride
• Cargo capacity: Front rack: 40 kg (88 lb.) / Rear rack: 80 kg (176 lb.)
• Towing capacity: 385 kg (850 lb.)
• Colour: Avenger Red

Standard

• Front Suspension: Independent Double A-arm with adjustable hydraulic shocks; 185 mm (7.3 in.) travel
• Rear Suspension: Swingarm with single adjustable hydraulic shock; 185 mm (7.3 in.) travel
