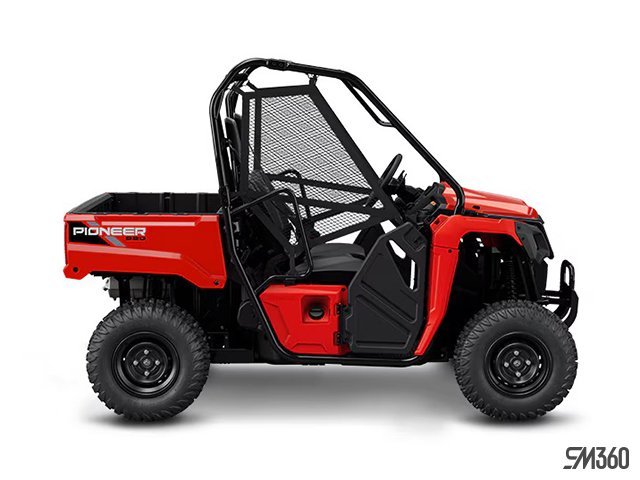

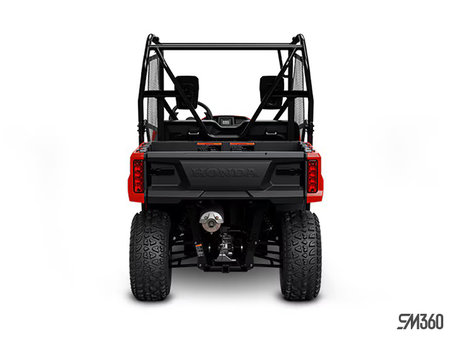

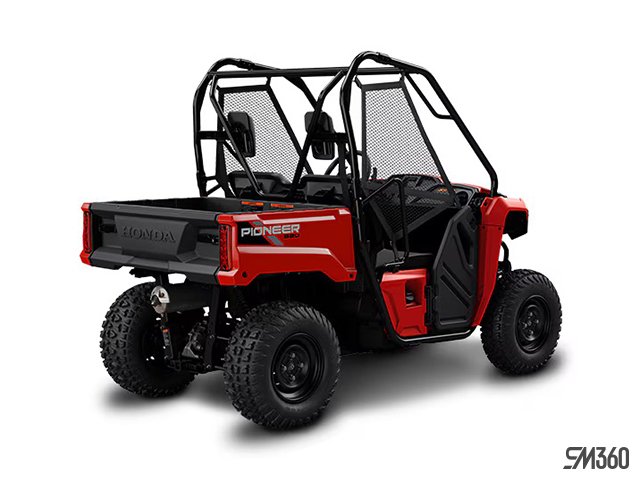

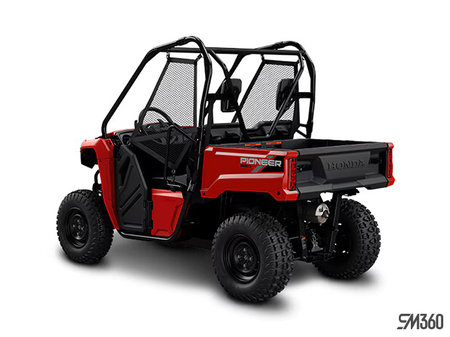

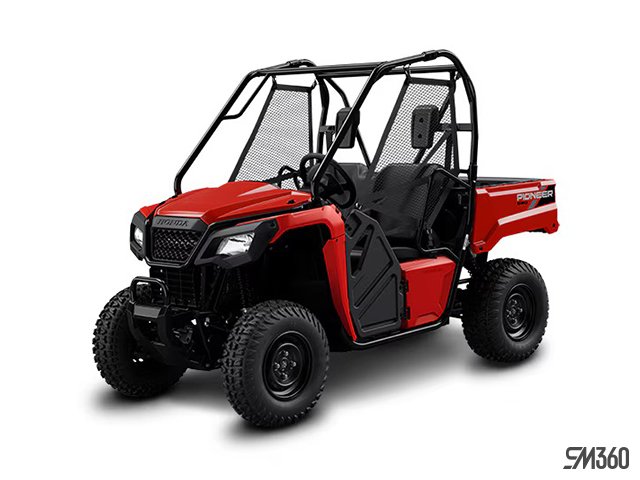

2025 Honda Pioneer 520 at Steele Recreation

Standard

• Engine Type : Liquid-cooled longitudinally mounted single-cylinder
• Fuel Delivery : PGM-FI electronic fuel injection
• Compression ratio : 9.5:1
• Displacement : 518 cc
• Bore & Stroke : 96 mm x 71.5 mm
• Valve Train : OHV, 2 valves
• Transmission : Five-speed automatic transmission with AT/MT modes with paddle shifting and reverse.
• Final Drive : 2WD/4WD; direct front and rear driveshafts with switchable 2WD/4WD

Standard

• Warranty : 12 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus
• Brakes : Front: Dual 200 mm discs, Rear: 170 mm disc
• Towing Capacity : 453 kg (1,000 lb.)
• Bed Capacity : 204 kg (450 lb.)
• Length : 2,668 mm (105 in.)
• Width : 1,270 mm (50.0 in.)
• Ground Clearance: 217 mm (8.5 in.)
• Wheelbase : 1,855 mm (73.0 in.)
• Curb Weight: 484 kg (1,067 lb.) including required fluids and full tank of gas – ready to ride
• Fuel Capacity : 15.4 liters, including 4.2-liter reserve
• Tires :Front: 24 x 8 - 12, 4 ply rating, Rear: 24 x 10 - 12, 4 ply rating

Standard

• Front Suspension : Independent double wishbone with hydraulic shocks; 147 mm (5.8 in.) travel
• Rear Suspension : Independent double wishbone with adjustable hydraulic shocks; 150 mm (5.9 in.) travel
