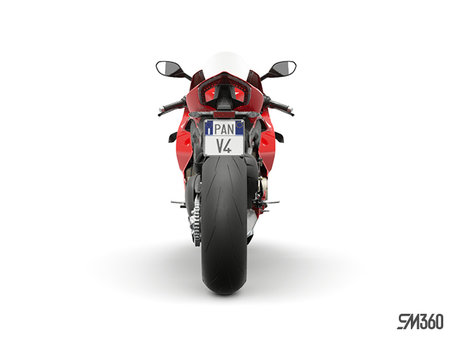

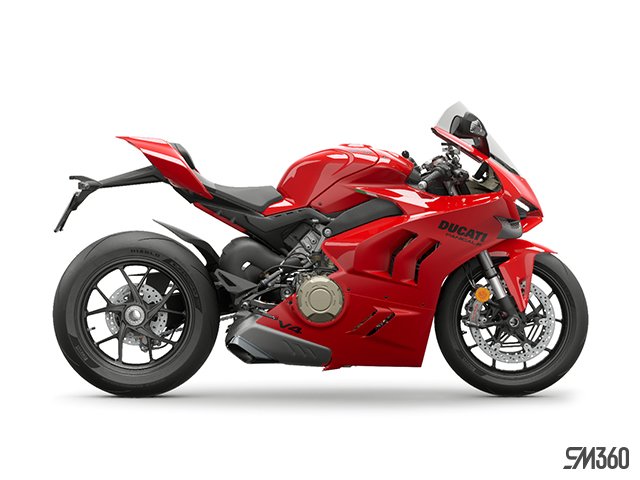

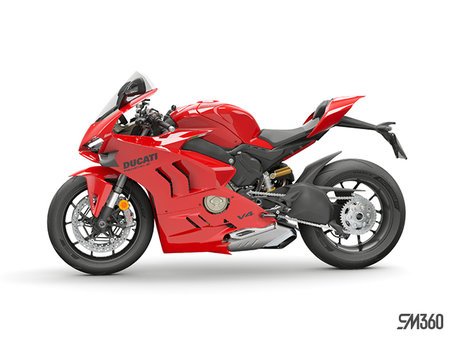

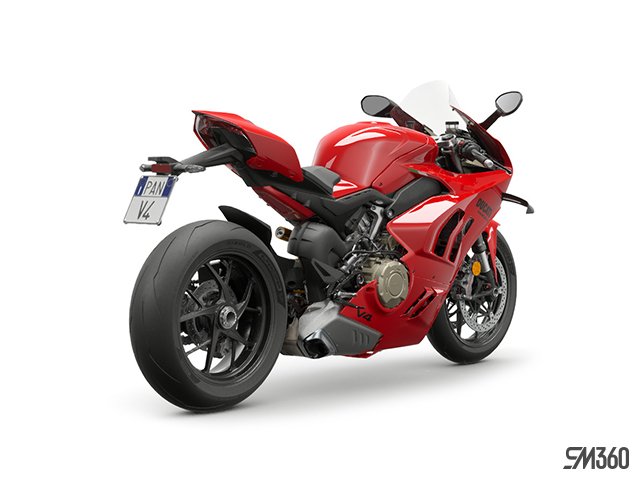

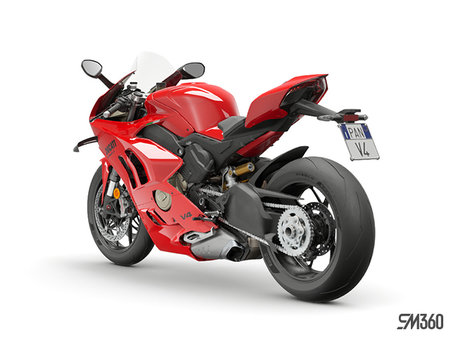

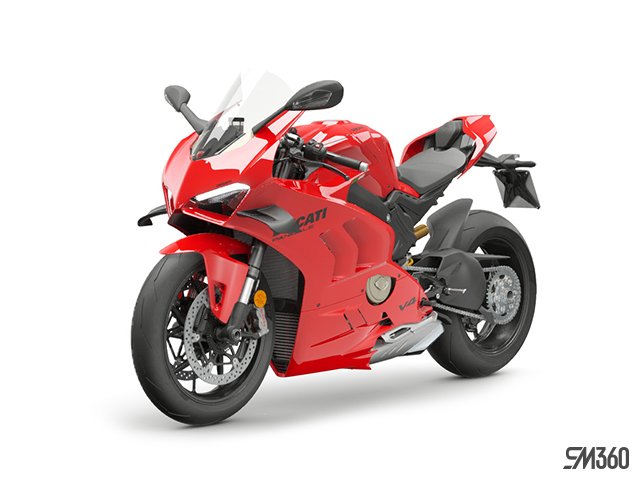

2024 Ducati Panigale V4 at Steele Recreation

Standard

• Compression Ratio : 14.0:1
• Engine : Desmosedici Stradale 90° V4, counter-rotating crankshaft, 4 Desmodromic timing, 4 valves per cylinder, liquid-cooled
• Displacement : 1,103 cc
• Bore x Stroke : 82 x 53.5 mm
• Power : 154.5 kW (210 hp) @ 12,500 rpm
• Torque : 122.8 Nm (90.6 lb-ft) @ 11,000 rpm
• Fuel Injection : Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies. Variable length intake system
• Exhaust : 4-2-1-2 system, with 2 catalytic converters and 4 lambda probes

Standard

• Gearbox : 6 speed with Ducati Quick Shift (DQS) up/down EVO 2
• Primary drive : Straight cut gears; Ratio 1.80:1
• Ratio : 1=36/15 2=34/17 3=33/19 4=32/21 5=30/22 6=27/22
• Final drive : Chain 525; Front sprocket 16; Rear sprocket 41
• Clutch : Hydraulically controlled slipper dry clutch. Self bleeding master cylinder

Standard

• Frame : Aluminum alloy "Front Frame" with optimized stiffnesses
• Front suspension : Fully adjustable Showa BPF fork 43 mm chromed inner tubes
• Front Wheel : 5-spokes light alloy 3.50 in x 17 nn
• Front Tire : Pirelli Diablo Supercorsa SP 120/70 ZR17
• Rear suspension : Fully adjustable Sachs unit. Aluminum single-sided swingarm
• Rear Wheel : 5-spokes light alloy 6.00 in x 17 in
• Rear Tire : Pirelli Diablo Supercorsa SP 200/60 ZR17
• Wheel travel (front/rear) : 120 mm (4.72 in) - 130 mm (5.12 in)
• Front Brake : 2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc Stylema (M4.30) 4-piston callipers with Bosch Cornering ABS EVO. Self bleeding master cylinder
• Rear Brake : 245 mm disc, 2-piston calliper with Bosch Cornering ABS EVO
• Instrumentation : Last generation digital unit with 5 in TFT colour display

Standard

• Safety Equipment : Riding Modes, Power Modes, Cornering ABS EVO, Ducati Traction Control (DTC) EVO 3, Ducati Wheelie Control (DWC) EVO, Ducati Slide Control (DSC), Engine Brake Control (EBC) EVO 2, Auto tyre calibration
• Standard Equipment : Ducati Power Launch (DPL), Ducati Quick Shift (DQS) up/down EVO 2, Full LED lighting with Daytime Running Light (DRL), Sachs steering damper, Quick adjustment buttons, Auto-off indicators, Chain guard, Provided Equipment, Passenger seat and footpegs kit
• Ready for : Ducati Data Analyser+ (DDA+) with GPS module, Ducati Multimedia System (DMS), Anti-theft, Heated grips
• Additional equipment: Passenger seat and footrest kit

Standard

• Dry Weight : 175 kg (386 lb)
• Curb Weight : 198.5 kg (437.6 lb)
• Seat Height : 850 mm (33.5 in)
• Wheelbase : 1.469 mm (57,8 in)
• Rake : 24,5°
• Trail : 100 mm (3,94 in)
• Fuel tank capacity : 17 l - 4.5 gallon (US)
• Number of Seats : Dual seats

Standard

• Warranty : 24 months unlimited mileage
• Maintenance Service Intervals : 12,000 km (7,500 m)/12 months
• Valve clearance adjustment : 24,000 km (15,000 m)
