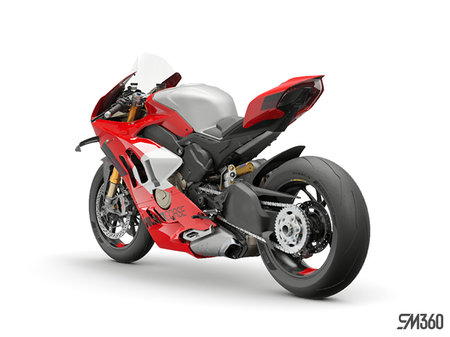

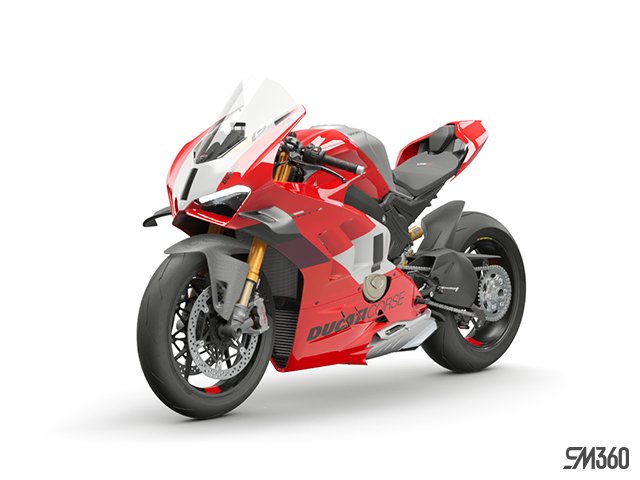

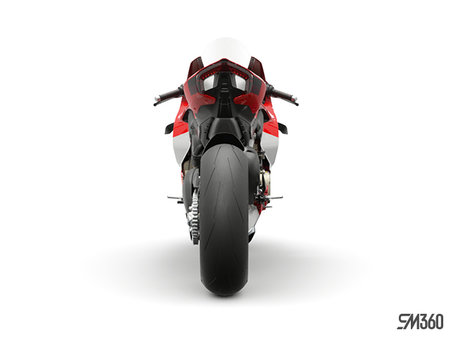

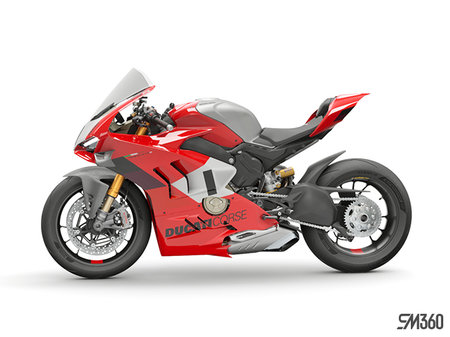

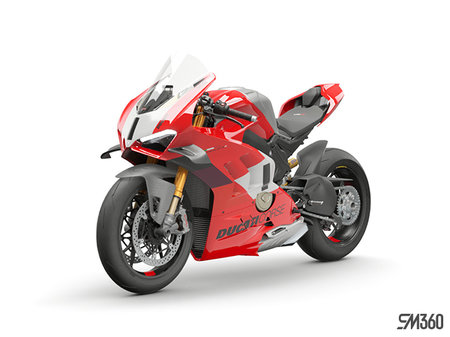

2024 Ducati Panigale V4 R at Steele Recreation

Standard

• Compression Ratio : 14.0:1
• Engine : Desmosedici Stradale 90° V4, counter-rotating crankshaft, 4 Desmodromic timing, 4 valves per cylinder, liquid-cooled
• Displacement : 998 cc
• Bore x Stroke : 81 x 48.4 mm
• Power : 152.2 kW (207 hp) @ 13,500 rpm, 174 kW (237 hp) @ 15,500 rpm with full racing exhaust
• Torque : 111.3 Nm (82 lb-ft) @ 12,000 rpm, 118 Nm (87 lb-ft) @ 12,250 rpm with full racing exhaust
• Fuel Injection : Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies with aerodynamic valves. Variable length intake system
• Exhaust : 4-2-1-2 system, with 2 catalytic converters and 4 lambda probes

Standard

• Gearbox : 6 speed with Ducati Quick Shift (DQS) up/down EVO 2
• Primary drive : Straight cut gears; Ratio 1.80:1
• Ratio : 1=36/15 2=34/17 3=33/19 4=32/21 5=30/22 6=27/22
• Final drive : Chain; Front sprocket 15; Rear sprocket 42
• Clutch : Hydraulically controlled slipper dry clutch. Self bleeding master cylinder

Standard

• Frame : Aluminum alloy "Front Frame" with optimized stiffnesses
• Front suspension : Fully adjustable 43 mm Öhlins NPX 25/30 pressurized fork with TiN treatment
• Front Wheel : 3-spokes forged aluminum alloy 3.50 in x 17 in
• Front Tire : Pirelli Diablo Supercorsa SP 120/70 ZR17
• Rear suspension : Fully adjustable Ohlins TTX 36 unit with hydraulic spring preload adjuster. Aluminium single-sided swingarm. Adjustable pivot position +/- 3 mm
• Rear Wheel : 3-spokes forged aluminum alloy 6.00 in x 17 in
• Wheel Travel (Front/Rear) : 125 mm (4.9 in) - 130 mm (5.1 in)
• Front Brake : 2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc Stylema (M4.30) 4-piston callipers with Bosch Cornering ABS EVO. Self bleeding master cylinder
• Rear Brake : 245 mm disc, 2-piston calliper with Bosch Cornering ABS EVO
• Instrumentation : Last generation digital unit with 5 in TFT colour display

Standard

• Safety Equipment : Riding Modes, Power Modes, Cornering ABS EVO, Ducati Traction Control (DTC) EVO 3, Ducati Wheelie Control (DWC) EVO, Ducati Slide Control (DSC), Engine Brake Control (EBC) EVO 2, Auto tyre calibration
• Standard Equipment : Ducati Power Launch (DPL), Ducati Quick Shift (DQS) up/down EVO 2, Full LED lighting with Daytime Running Light (DRL), Öhlins steering damper, Quick adjustment buttons, Lithium-ion battery, Auto-off indicators, Racing style handle grips, Chain guard, Marchesini forged aluminum wheels, Carbon fiber front mudguard, Carbon fiber heatshield, Carbon fiber wings, Billet aluminum steering stem with bike number, High-flow air filter
• Provided Equipment : Machined mirror block-off plates, License plate mount removal plug, Ducati Data Analyser+ (DDA+) with GPS module
• Ready for : Ducati Multimedia System (DMS) and anti-theft

Standard

• Dry Weight : 172 kg (379 lb), 167 kg (368 lb) with full racing exhaust
• Curb Weight : 193.5 kg (427 lb), 188.5 kg (415 lb) with full racing exhaust
• Seat Height : 850 mm (33.5 in)
• Wheelbase : 1,471mm (57,9 in)
• Rake : 24,5°
• Trail : 100 mm (3,94 in)
• Fuel tank capacity : 17 l - 4.5 gallon (US)
• Number of Seats : Single seat

Standard

• Warranty : 24 months unlimited mileage
• Maintenance Service Intervals : 12,000 km (7,500 m)/12 months
• Valve clearance adjustment : 24,000 km (15,000 m)
